How to change gaskets | Empas spraying trolley
Step by step explanation on how to change gaskets of your Empas spraying trolley
Step by step explanation on how to change gaskets of your Empas spraying trolley
STEP 1
Flush the pump with clean water.
STEP 2

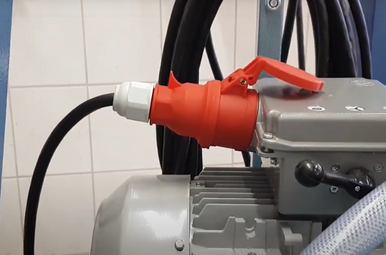

Unplug the pump.
STEP 3

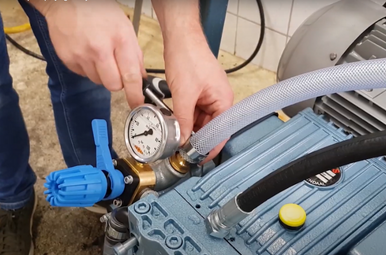

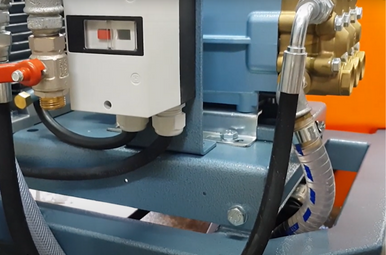

Disconnect the pressure hoses.
STEP 4

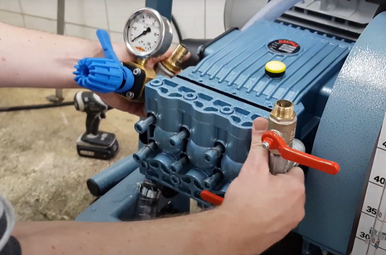

Disconnect the suction and return hose.
STEP 5

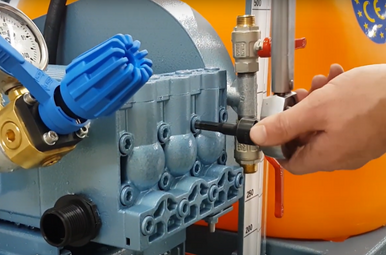

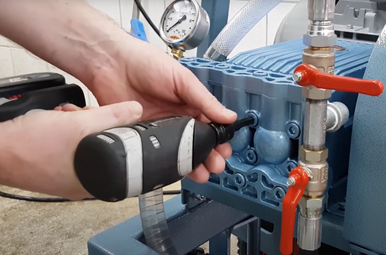

Loosen the head bolts.
STEP 6
Remove the pump head from the crankcase.
STEP 7

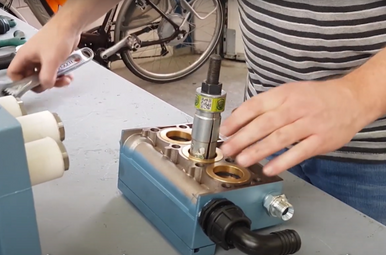

Use an inner trigger set to remove the gaskets, try not to damage the brass bushings.
STEP 8

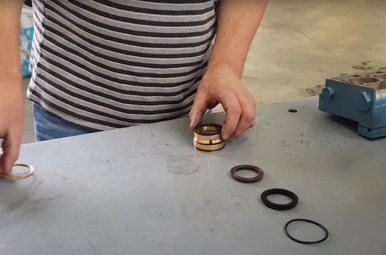

Mount the new gasketss in the pumphead in the right order.
STEP 9

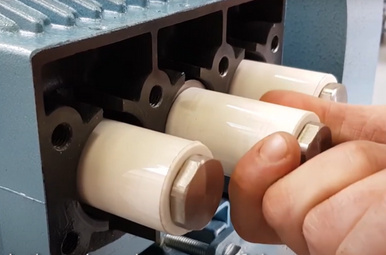

Check that the plungers of the pump are not damaged.
STEP 10
Re-assemble the pumphead on the crankcase.
STEP 11

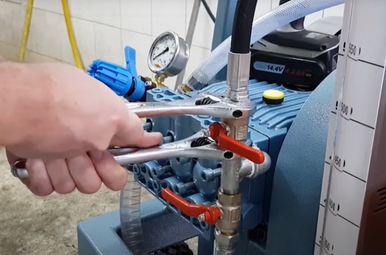

Tighten the head bolts securely using a mixer wrench.
STEP 12
Reconnect the suction and return hose.
STEP 13

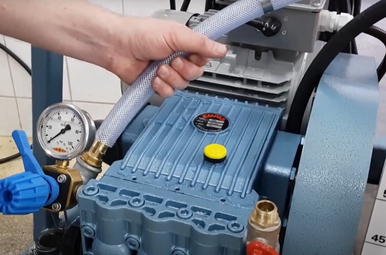

Finally, connect the pressure hoses.
In this video we show you how to change gaskets of your horticultural Empas spraying trolley.
