Compass 2S Irrigation Edition

 3,185.00 excl. VAT

SKU: 085972104 Brand:
Order Unit: piece(s)
Order Unit: piece(s)
View cart

The online spare parts store for horticulture

Worldwide delivery with FedEx
You can place your order without an account
Receive a tracking code when your order is shipped
.

This part fits these machines

Description

The Compass 2S Irrigation Edition is a part for the Priva Proces Computer Compass

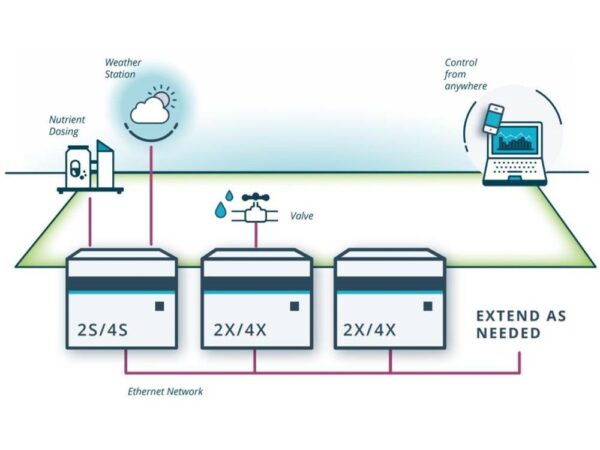

Priva Compass has two basic variants: Priva Compass 2S and Priva Compass 4S. It is possible to expand the Compass system with a Compass 2X or 4X to control multiple cultivation zones.
Depending on the number of cultivation zones and the number of measurements and controls you can choose the most suiteble solution for the situation.

By default every Priva Compass 2S/X or 4S/X offers:

  • Priva Gateway (only in Compass 2S/4S)
  • Priva Blue ID C4 controller(s)
  • Flexibility due to small I/O modules
  • multivoltage power 100-230 VAC 50-60Hz
  • Separated power supply for Priva Compass and field devices (two 24 VDC power supplies)
  • Industrial quality control boxes

De irrigation edition is an irrigation controller with software options, used to control for example water units like the Priva NutriOne, NutriFit or NutriJet with at most 5 dosing channels and supporting at most 25 valves and 10 irrigation strategies.

The Priva Compass 2S Industrial cabinet (500x500x210) including:

  • Priva Blue ID C4-MX34-Controller
  • Priva Gateway including Priva Operator core-edition
  • Priva WiFi-Dongle used to make the Compass into a local WiFi-Hotspot
  • 3 Priva Blue ID DOR6 Expansion modules
  • Total available I/O; 8 universal inputs, 12 digital inputs, 6 analog outputs, 26 digital outputs
  • Trafo Block 100-230V / 100 VA / 24VAC / 50-60Hz
  • 2 power supplies 100-240VAC 24VDC / 3.2A / 50-60Hz

It is not possible to put the Compass irrigation editions in a network.

regardless of the device you use, you always have a clear dashboard available. The dashboards show you the most important information in a simple overview. With the clear graphs and dashboard, you can see the status of different parts at a glance. This way you are always directly aware of every part of your process.

Additional information

Order Unit

HS Code

External Article Number

3772110

Country of Origin

The Netherlands
