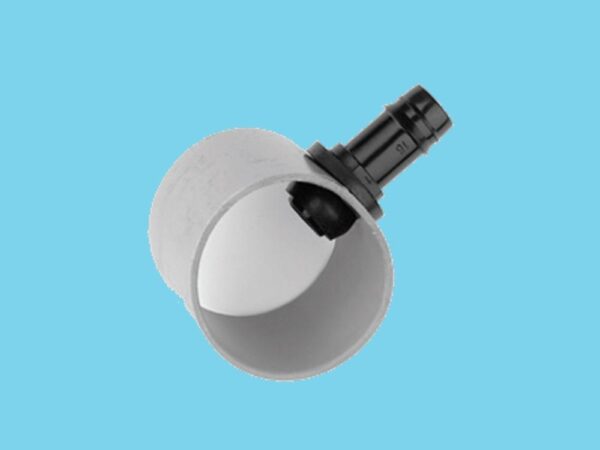

Grommet x 16 mm tule

Grommet x 16 mm tule

0.69$ excl. VAT

SKU: 989106513 Brand:
Order Unit: piece(s)
Order Unit: piece(s)

The online spare parts store for horticulture

Worldwide delivery with FedEx
You can place your order without an account
Receive a tracking code when your order is shipped
.

Description

For the connection of tape-irrigation hoses as the Revaslim Royal brinkman supplies a tape coupling.
The tape fittings come in a wide range and includes among others : connectors, screw connection, PE connection, end stop, layflat starter and grommet

Features:

  • Compression fitting for Revaslim and other tape hoses.
  • Wide delivery spectrum

Application Agricultural sector:
Drip hoses including Revadrip and Revaslim

Technical specifications:

Colour body: Black Connection on: 1. Screw-thread%” and 34″, exterior BSPT*
Swivel colour: Black Blue 2. PE-hose by means Barb pillar for PE 16 mm
Material: PP (Polypropylene – house and swivel) 3. Flat hose by means of layflat starter
EPDM (grommet rubber) 4. LDPE hose/tube by means of stick starter
Max. Pressure: 4 bar 5. HDPE / PVC tube by means of grommet
Max. temperature: -10 tot +45°C (At decreasing pressure) Hole diameter grommet: HDPE w.d. 2-3 mm / 15,5 mm (with grommet rubber)
Diameter tape: 16/17 mm (wall thickness: 0,1 – 1,1 mm) HDPE wd. 3-6 mm / 16 mm (with grommet rubber)
Hole diameter lay flat starter: 14 mm PVC w.d. 2-4 mm / 16 mm (with grommet rubber)
Hole diameter stick starter: 8 mm (only PE) PVC w.d. 4-5,5 mm / 16,5 mm (with grommet rubber)
